示例：使用 SteinVI 推断的深度马尔可夫模型

在此示例中，我们使用 SteinVI 推断了一个深度马尔可夫模型 (DMM)，用于生成音乐（约翰·塞巴斯蒂安·巴赫的赞美诗）。

该 DMM 模型基于参考文献 [1][2] 和 Pyro DMM 示例：https://pyro.org.cn/examples/dmm.html。

参考文献

1. 多变量分布的路径导数 Martin Jankowiak 和 Theofanis Karaletsos (2019)

2. 非线性状态空间模型的结构化推断网络 [arXiv:1609.09869]

   Rahul G. Krishnan, Uri Shalit 和 David Sontag (2016)

import argparse

import numpy as np

import jax
from jax import nn, numpy as jnp, random
from optax import adam, chain

import numpyro
from numpyro.contrib.einstein import SteinVI
from numpyro.contrib.einstein.mixture_guide_predictive import MixtureGuidePredictive
from numpyro.contrib.einstein.stein_kernels import RBFKernel
import numpyro.distributions as dist
from numpyro.examples.datasets import JSB_CHORALES, load_dataset
from numpyro.optim import optax_to_numpyro


def _reverse_padded(padded, lengths):
    def _reverse_single(p, length):
        new = jnp.zeros_like(p)
        reverse = jnp.roll(p[::-1], length, axis=0)
        return new.at[:].set(reverse)

    return jax.vmap(_reverse_single)(padded, lengths)


def load_data(split="train"):
    _, fetch = load_dataset(JSB_CHORALES, split=split)
    lengths, seqs = fetch(0)
    return (seqs, _reverse_padded(seqs, lengths), lengths)


def emitter(x, params):
    """Parameterizes the bernoulli observation likelihood `p(x_t | z_t)`"""
    l1 = nn.relu(jnp.matmul(x, params["l1"]))
    l2 = nn.relu(jnp.matmul(l1, params["l2"]))
    return jnp.matmul(l2, params["l3"])


def transition(x, params):
    """Parameterizes the gaussian latent transition probability `p(z_t | z_{t-1})`
    See section 5 in [1].

    **Reference:**
        1. Structured Inference Networks for Nonlinear State Space Models [arXiv:1609.09869]
        Rahul G. Krishnan, Uri Shalit and David Sontag (2016)
    """

    def _gate(x, params):
        l1 = nn.relu(jnp.matmul(x, params["l1"]))
        return nn.sigmoid(jnp.matmul(l1, params["l2"]))

    def _shared(x, params):
        l1 = nn.relu(jnp.matmul(x, params["l1"]))
        return jnp.matmul(l1, params["l2"])

    def _mean(x, params):
        return jnp.matmul(x, params["l1"])

    def _std(x, params):
        l1 = jnp.matmul(nn.relu(x), params["l1"])
        return nn.softplus(l1)

    gt = _gate(x, params["gate"])
    ht = _shared(x, params["shared"])
    loc = (1 - gt) * _mean(x, params["mean"]) + gt * ht
    std = _std(ht, params["std"])
    return loc, std


def combiner(x, params):
    mean = jnp.matmul(x, params["mean"])
    std = nn.softplus(jnp.matmul(x, params["std"]))
    return mean, std


def gru(xs, lengths, init_hidden, params):
    """RNN with GRU. Based on https://github.com/jax-ml/jax/pull/2298"""

    def apply_fun_single(state, inputs):
        i, x = inputs
        inp_update = jnp.matmul(x, params["update_in"])
        hidden_update = jnp.dot(state, params["update_weight"])
        update_gate = nn.sigmoid(inp_update + hidden_update)
        reset_gate = nn.sigmoid(
            jnp.matmul(x, params["reset_in"]) + jnp.dot(state, params["reset_weight"])
        )
        output_gate = update_gate * state + (1 - update_gate) * jnp.tanh(
            jnp.matmul(x, params["out_in"])
            + jnp.dot(reset_gate * state, params["out_weight"])
        )
        hidden = jnp.where((i < lengths)[:, None], output_gate, jnp.zeros_like(state))
        return hidden, hidden

    init_hidden = jnp.broadcast_to(init_hidden, (xs.shape[1], init_hidden.shape[1]))
    return jax.lax.scan(apply_fun_single, init_hidden, (jnp.arange(xs.shape[0]), xs))


def _normal_init(*shape):
    return lambda rng_key: dist.Normal(scale=0.1).sample(rng_key, shape)


def model(
    seqs,
    seqs_rev,
    lengths,
    *,
    subsample_size=77,
    latent_dim=32,
    emission_dim=100,
    transition_dim=200,
    data_dim=88,
    gru_dim=150,
    annealing_factor=1.0,
    predict=False,
):
    max_seq_length = seqs.shape[1]

    emitter_params = {
        "l1": numpyro.param("emitter_l1", _normal_init(latent_dim, emission_dim)),
        "l2": numpyro.param("emitter_l2", _normal_init(emission_dim, emission_dim)),
        "l3": numpyro.param("emitter_l3", _normal_init(emission_dim, data_dim)),
    }

    trans_params = {
        "gate": {
            "l1": numpyro.param("gate_l1", _normal_init(latent_dim, transition_dim)),
            "l2": numpyro.param("gate_l2", _normal_init(transition_dim, latent_dim)),
        },
        "shared": {
            "l1": numpyro.param("shared_l1", _normal_init(latent_dim, transition_dim)),
            "l2": numpyro.param("shared_l2", _normal_init(transition_dim, latent_dim)),
        },
        "mean": {"l1": numpyro.param("mean_l1", _normal_init(latent_dim, latent_dim))},
        "std": {"l1": numpyro.param("std_l1", _normal_init(latent_dim, latent_dim))},
    }

    z0 = numpyro.param(
        "z0", lambda rng_key: dist.Normal(0, 1.0).sample(rng_key, (latent_dim,))
    )
    z0 = jnp.broadcast_to(z0, (subsample_size, 1, latent_dim))
    with numpyro.plate(
        "data", seqs.shape[0], subsample_size=subsample_size, dim=-1
    ) as idx:
        if subsample_size == seqs.shape[0]:
            seqs_batch = seqs
            lengths_batch = lengths
        else:
            seqs_batch = seqs[idx]
            lengths_batch = lengths[idx]

        masks = jnp.repeat(
            jnp.expand_dims(jnp.arange(max_seq_length), axis=0), subsample_size, axis=0
        ) < jnp.expand_dims(lengths_batch, axis=-1)
        # NB: Mask is to avoid scoring 'z' using distribution at this point
        z = numpyro.sample(
            "z",
            dist.Normal(0.0, jnp.ones((max_seq_length, latent_dim)))
            .mask(False)
            .to_event(2),
        )

        z_shift = jnp.concatenate([z0, z[:, :-1, :]], axis=-2)
        z_loc, z_scale = transition(z_shift, params=trans_params)

        with numpyro.handlers.scale(scale=annealing_factor):
            # Actually score 'z'
            numpyro.sample(
                "z_aux",
                dist.Normal(z_loc, z_scale)
                .mask(jnp.expand_dims(masks, axis=-1))
                .to_event(2),
                obs=z,
            )

        emission_probs = emitter(z, params=emitter_params)
        if predict:
            tunes = None
        else:
            tunes = seqs_batch
        numpyro.sample(
            "tunes",
            dist.Bernoulli(logits=emission_probs)
            .mask(jnp.expand_dims(masks, axis=-1))
            .to_event(2),
            obs=tunes,
        )


def guide(
    seqs,
    seqs_rev,
    lengths,
    *,
    subsample_size=77,
    latent_dim=32,
    emission_dim=100,
    transition_dim=200,
    data_dim=88,
    gru_dim=150,
    annealing_factor=1.0,
    predict=False,
):
    max_seq_length = seqs.shape[1]
    seqs_rev = jnp.transpose(seqs_rev, axes=(1, 0, 2))

    combiner_params = {
        "mean": numpyro.param("combiner_mean", _normal_init(gru_dim, latent_dim)),
        "std": numpyro.param("combiner_std", _normal_init(gru_dim, latent_dim)),
    }

    gru_params = {
        "update_in": numpyro.param("update_in", _normal_init(data_dim, gru_dim)),
        "update_weight": numpyro.param("update_weight", _normal_init(gru_dim, gru_dim)),
        "reset_in": numpyro.param("reset_in", _normal_init(data_dim, gru_dim)),
        "reset_weight": numpyro.param("reset_weight", _normal_init(gru_dim, gru_dim)),
        "out_in": numpyro.param("out_in", _normal_init(data_dim, gru_dim)),
        "out_weight": numpyro.param("out_weight", _normal_init(gru_dim, gru_dim)),
    }

    with numpyro.plate(
        "data", seqs.shape[0], subsample_size=subsample_size, dim=-1
    ) as idx:
        if subsample_size == seqs.shape[0]:
            seqs_rev_batch = seqs_rev
            lengths_batch = lengths
        else:
            seqs_rev_batch = seqs_rev[:, idx, :]
            lengths_batch = lengths[idx]

        masks = jnp.repeat(
            jnp.expand_dims(jnp.arange(max_seq_length), axis=0), subsample_size, axis=0
        ) < jnp.expand_dims(lengths_batch, axis=-1)

        h0 = numpyro.param(
            "h0",
            lambda rng_key: dist.Normal(0.0, 1).sample(rng_key, (1, gru_dim)),
        )
        _, hs = gru(seqs_rev_batch, lengths_batch, h0, gru_params)
        hs = _reverse_padded(jnp.transpose(hs, axes=(1, 0, 2)), lengths_batch)
        with numpyro.handlers.scale(scale=annealing_factor):
            numpyro.sample(
                "z",
                dist.Normal(*combiner(hs, combiner_params))
                .mask(jnp.expand_dims(masks, axis=-1))
                .to_event(2),
            )

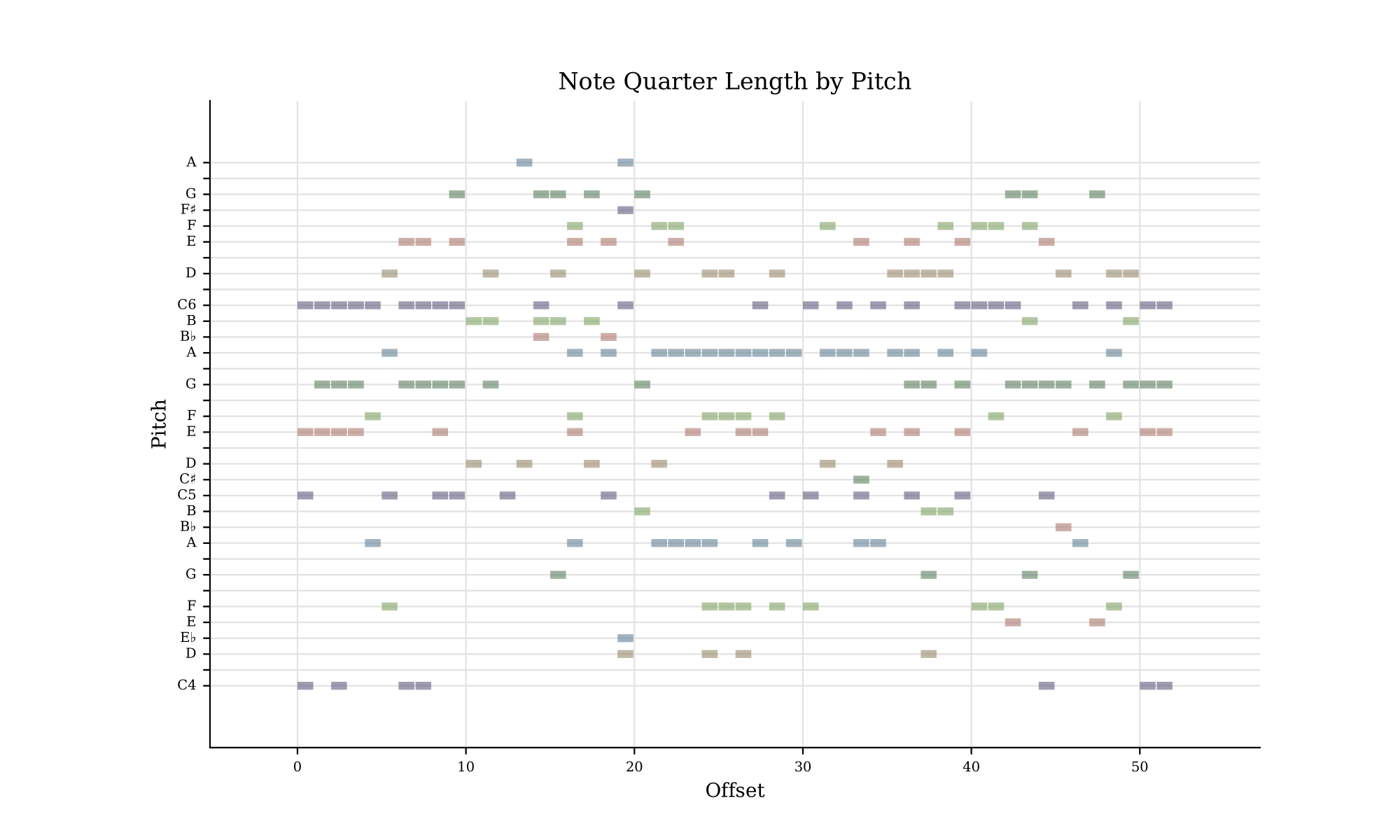

def vis_tune(i, tunes, lengths, name="stein_dmm.pdf"):
    tune = tunes[i, : lengths[i]]
    try:
        from music21.chord import Chord
        from music21.pitch import Pitch
        from music21.stream import Stream

        stream = Stream()
        for chord in tune:
            stream.append(
                Chord(list(Pitch(pitch) for pitch in (np.arange(88) + 21)[chord > 0]))
            )
        plot = stream.plot(doneAction=None)
        plot.write(name)
    except ModuleNotFoundError:
        import matplotlib.pyplot as plt

        plt.imshow(tune.T, cmap="Greys")
        plt.ylabel("Pitch")
        plt.xlabel("Offset")
        plt.savefig(name)


def main(args):
    inf_key, pred_key = random.split(random.PRNGKey(seed=args.rng_seed), 2)

    steinvi = SteinVI(
        model,
        guide,
        optax_to_numpyro(chain(adam(1e-2))),
        RBFKernel(),
        num_elbo_particles=args.num_elbo_particles,
        num_stein_particles=args.num_stein_particles,
    )

    seqs, rev_seqs, lengths = load_data()
    results = steinvi.run(
        inf_key,
        args.max_iter,
        seqs,
        rev_seqs,
        lengths,
        gru_dim=args.gru_dim,
        subsample_size=args.subsample_size,
    )
    pred = MixtureGuidePredictive(
        model,
        guide,
        params=results.params,
        num_samples=1,
        guide_sites=steinvi.guide_sites,
    )
    seqs, rev_seqs, lengths = load_data("valid")
    pred_notes = pred(
        pred_key, seqs, rev_seqs, lengths, subsample_size=seqs.shape[0], predict=True
    )["tunes"]

    vis_tune(0, pred_notes[0], lengths)


if __name__ == "__main__":
    parser = argparse.ArgumentParser()
    parser.add_argument("--subsample-size", type=int, default=10)
    parser.add_argument("--max-iter", type=int, default=100)
    parser.add_argument("--repulsion", type=float, default=1.0)
    parser.add_argument("--verbose", type=bool, default=True)
    parser.add_argument("--num-stein-particles", type=int, default=5)
    parser.add_argument("--num-elbo-particles", type=int, default=5)
    parser.add_argument("--progress-bar", type=bool, default=True)
    parser.add_argument("--gru-dim", type=int, default=150)
    parser.add_argument("--rng-key", type=int, default=142)
    parser.add_argument("--device", default="cpu", choices=["gpu", "cpu"])
    parser.add_argument("--rng-seed", default=142, type=int)

    args = parser.parse_args()

    numpyro.set_platform(args.device)

    main(args)
