示例：AutoDAIS

AutoDAIS 构建了一个指南（guide），它结合了哈密尔顿蒙特卡罗、退火重要性采样和变分推断的元素。

在这个演示脚本中，我们构建了一个有点人工的示例，涉及一个高斯过程二元分类器。我们的目标是证明

• DAIS 可以实现比例如均值场变分推断更好的 ELBO。

• DAIS 可以实现比例如均值场变分推断更好的后验近似。

• 随着增加 K（采样器中使用的 HMC 步骤数），DAIS 的性能会提高。

参考文献

[1] “通过未校正哈密尔顿退火的 MCMC 变分推断，”

Tomas Geffner, Justin Domke。

[2] “可微退火重要性采样和梯度噪声的风险，”

Guodong Zhang, Kyle Hsu, Jianing Li, Chelsea Finn, Roger Grosse。

import argparse

import matplotlib
import matplotlib.pyplot as plt
import numpy as np
from scipy.special import expit
import seaborn as sns

from jax import random
import jax.numpy as jnp

import numpyro
import numpyro.distributions as dist
from numpyro.infer import MCMC, NUTS, SVI, Trace_ELBO, autoguide
from numpyro.util import enable_x64

matplotlib.use("Agg")  # noqa: E402


# squared exponential kernel
def kernel(X, Z, length, jitter=1.0e-6):
    deltaXsq = jnp.power((X[:, None] - Z) / length, 2.0)
    k = jnp.exp(-0.5 * deltaXsq) + jitter * jnp.eye(X.shape[0])
    return k


def model(X, Y, length=0.2):
    # compute kernel
    k = kernel(X, X, length)

    # sample from gaussian process prior
    f = numpyro.sample(
        "f",
        dist.MultivariateNormal(loc=jnp.zeros(X.shape[0]), covariance_matrix=k),
    )
    # we use a non-standard link function to induce extra non-gaussianity
    numpyro.sample("obs", dist.Bernoulli(logits=jnp.power(f, 3.0)), obs=Y)


# create artificial binary classification dataset
def get_data(N=16):
    np.random.seed(0)
    X = np.linspace(-1, 1, N)
    Y = X + 0.2 * np.power(X, 3.0) + 0.5 * np.power(0.5 + X, 2.0) * np.sin(4.0 * X)
    Y -= np.mean(Y)
    Y /= np.std(Y)
    Y = np.random.binomial(1, expit(Y))

    assert X.shape == (N,)
    assert Y.shape == (N,)

    return X, Y


# helper function for running SVI with a particular autoguide
def run_svi(rng_key, X, Y, guide_family="AutoDiagonalNormal", K=8):
    assert guide_family in ["AutoDiagonalNormal", "AutoDAIS"]

    if guide_family == "AutoDAIS":
        guide = autoguide.AutoDAIS(model, K=K, eta_init=0.02, eta_max=0.5)
        step_size = 5e-4
    elif guide_family == "AutoDiagonalNormal":
        guide = autoguide.AutoDiagonalNormal(model)
        step_size = 3e-3

    optimizer = numpyro.optim.Adam(step_size=step_size)
    svi = SVI(model, guide, optimizer, loss=Trace_ELBO())
    svi_result = svi.run(rng_key, args.num_svi_steps, X, Y)
    params = svi_result.params

    final_elbo = -Trace_ELBO(num_particles=1000).loss(
        rng_key, params, model, guide, X, Y
    )

    guide_name = guide_family
    if guide_family == "AutoDAIS":
        guide_name += "-{}".format(K)

    print("[{}] final elbo: {:.2f}".format(guide_name, final_elbo))

    return guide.sample_posterior(
        random.PRNGKey(1), params, sample_shape=(args.num_samples,)
    )


# helper function for running mcmc
def run_nuts(mcmc_key, args, X, Y):
    mcmc = MCMC(NUTS(model), num_warmup=args.num_warmup, num_samples=args.num_samples)
    mcmc.run(mcmc_key, X, Y)
    mcmc.print_summary()
    return mcmc.get_samples()


def main(args):
    X, Y = get_data()

    rng_keys = random.split(random.PRNGKey(0), 4)

    # run SVI with an AutoDAIS guide for two values of K
    dais8_samples = run_svi(rng_keys[1], X, Y, guide_family="AutoDAIS", K=8)
    dais128_samples = run_svi(rng_keys[2], X, Y, guide_family="AutoDAIS", K=128)

    # run SVI with an AutoDiagonalNormal guide
    meanfield_samples = run_svi(rng_keys[3], X, Y, guide_family="AutoDiagonalNormal")

    # run MCMC inference
    nuts_samples = run_nuts(rng_keys[0], args, X, Y)

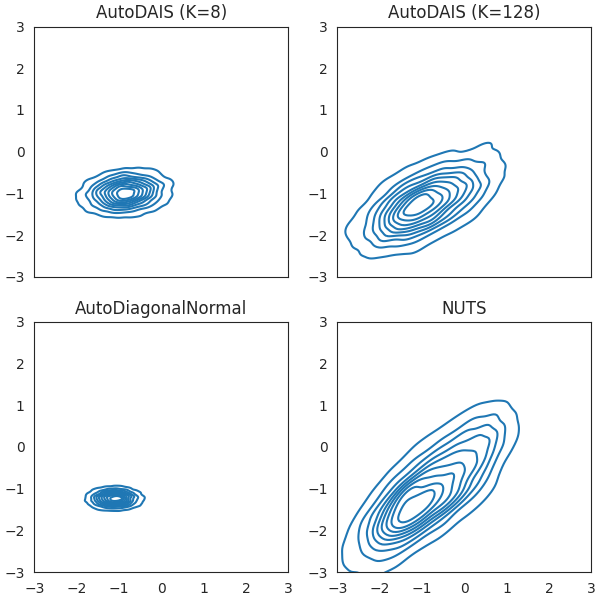

    # make 2d density plots of the (f_0, f_1) marginal posterior
    if args.num_samples >= 1000:
        sns.set_style("white")

        coord1, coord2 = 0, 1

        fig, axes = plt.subplots(
            2, 2, sharex=True, figsize=(6, 6), constrained_layout=True
        )

        xlim = (-3, 3)
        ylim = (-3, 3)

        def add_fig(samples, title, ax):
            sns.kdeplot(x=samples["f"][:, coord1], y=samples["f"][:, coord2], ax=ax)
            ax.set(title=title, xlim=xlim, ylim=ylim)

        add_fig(dais8_samples, "AutoDAIS (K=8)", axes[0][0])
        add_fig(dais128_samples, "AutoDAIS (K=128)", axes[0][1])
        add_fig(meanfield_samples, "AutoDiagonalNormal", axes[1][0])
        add_fig(nuts_samples, "NUTS", axes[1][1])

        plt.savefig("dais_demo.png")


if __name__ == "__main__":
    assert numpyro.__version__.startswith("0.18.0")
    parser = argparse.ArgumentParser("Usage example for AutoDAIS guide.")
    parser.add_argument("--num-svi-steps", type=int, default=80 * 1000)
    parser.add_argument("--num-warmup", type=int, default=2000)
    parser.add_argument("--num-samples", type=int, default=10 * 1000)
    parser.add_argument("--device", default="cpu", type=str, choices=["cpu", "gpu"])

    args = parser.parse_args()

    enable_x64()
    numpyro.set_platform(args.device)

    main(args)
